basic information about our stainless steel products:
| Thickness | 0.3mm-3mm |
| Width | 1000mm,2000mm or as your requirement |
| Length | 1219mm ,3050mm or as your requirement |
| Material | 201/304/316 |
| Standard | AISI,DIN,GB,JIS |
| Finish | 2B,BA, Hot rolled, No.1-No.4 |
| Stock | Width:1000mm,1219mm,1500mm,1800mm,2000mm Length:2000mm,2438mm,2500mm,6000mm,6096mm |
| Usage | Tableware, cabinets, cooking utensils, wate heaters, architectural decoration, chemical industry and so on |
| Minimum Quantity | 50 pieces |
| Technique | Cold rolled and Hot rolled |
| Productivity | 10000 tons / month |
| Terms of Pa | D/P T/T |
stainless steel coil/sheets surface treatment:
| Characteristics and application |
| 2B | The surface brightness and flatness of 2B is better than 2D. Then through a special surface treatment to improve its mechanical properties, 2B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abrasive belt of git#100#200,have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils,etc. |
| NO.4 | Polished with abrasive belt of grit#150#180,have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc, |
| HL | Polished with abrasive belt of grit#150#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc |
| 8K | The product have excellent brightness and prefect reflexivity can be the nirror |
Material: low carbon steel plate, stainless steel plate, copper plate,aluminum plate, titanium plate, nickel plate, plastic board, etc.
Features: stamping; The bending resistance, anti-aging , rust-proofing, widely using ; Smooth surface, strong and durable.
Hole pattern: Decorative, Hexagonal, Round, Slotted, Square, rectangular hole, triangle hole, the plum blossom,
combination and some others. We could make holes according to our customers.
2. Perforated Metal Mesh/Screen Advange and Feature:
1> Customer needs to provide us with sketch, product model, material requirements, and then we will draw detailed design
2> According to these information.
3> Sizes and materials can be changed.
4> Price varies on material and dimensions.
5> We are direct manufacturer in sheet metal work with experience of 10 years.
6> A variety of drawing formats: Pro/E , solidworks, Cimatron, AutoCAD and so on
3. Perforated Metal Screen Application :
Filter; Fence; Shield; Mesh basket; Shelf; Screen; Loudspeakers; Air vent; Decoration; Lamps and lanterns device;
Quality control panel; Sample points screen; ceiling,etc.
Required Information for quote :
1. The shape of the hole : round ( pls give us the diameter of the hole and the distance between neighboring holes )
or some other shapes (pls send us sample or pictures with specific data )
2. The thickness of the plate
3. The width and length of the plate
4.The material of the plate
Thanks for your attention on us.If you are interested in any of ourproducts, Please feel free to contact me.
Forward Filter Manufacturers Inc, is located in the New District of Wuxi, Jiangsu Province, and is the subsidiary of Forward Wire Cloth Imp &
Exp Ltd of Wuxi. We are specialized in manufacturing Spiral and Straight Seam Welded Perforated Tubes for filtrationand auto industry as well. We have now become a qualified supplier for some famous end-users.
Our technology and modern equipment can fully guarantee the reliable and stable quality products and long service time for meeting your specific needs. Quality first and reputation uppermost is the principle to our work. We offer fabrication services for your special need and quantity demand. We will guarantee you the efficient services. Special products need the care from specialized people.
We look forward to working with you for a mutual success.
|
|

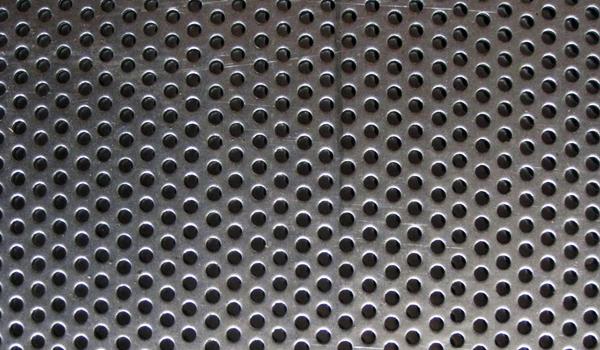

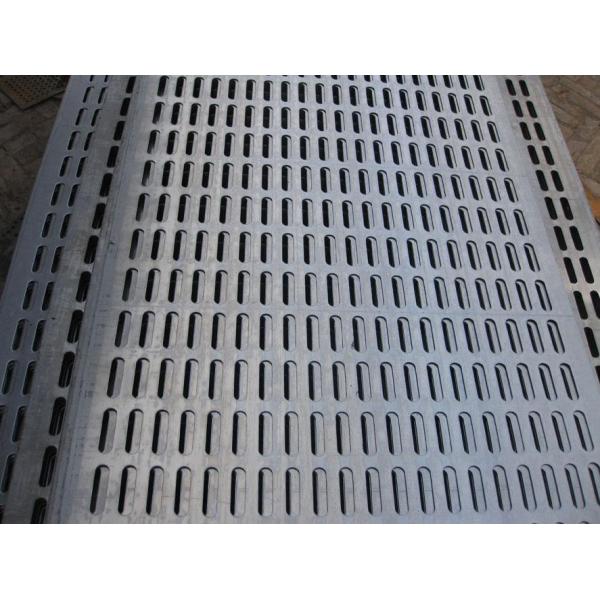

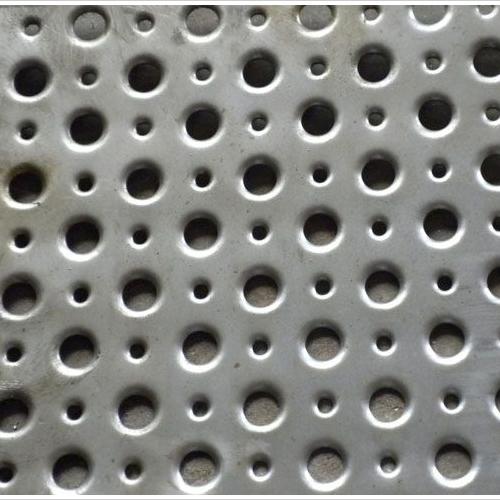

Perforated Metal Mesh/Stainless Steel Round Hole Plate/facade perforated panel/all kinds of hole shape Images
|
