Cold Roll Steel Cut to Length Metal Roll Forming Machine with 0 - 30 m / min Speed
Main Technical Parameters of Cut to Length Roll Forming Machine
| Product Name | Item | Description |
| Cut to Length Roll Forming Machine | Thickness | 0.4mm-3.0 mm |
| Material | Galvanized steel and cold roll steel |
| Sheet width | 1300mm |
| Coil inner diameter | Φ450mm-Φ550mm |
| Coil outer diameter | ≤Φ1400mm |
| Decoiler capacity | ≤8T |
| Main motor power | 11.0 kw |
| Line working speed | 0-30m/min |
| Cutting to length precision | ±1.0mm |
| Cutting blade material | Cr12 |
| Rigid of cutting blade | HRC58°━60° |
| Electric controlling system | PLC program equipped for operation |
Main Components of Cut to Length Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Roll Forming Machine | 1 Unit |
| Hydraulic Cutting Device | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Runout Table | 1 Unit |
Detailed Specification
1. Hydraulic decoiler
Its capacity is 8T, discharging steel coil, vertical and horizontal movement by pistons, so that guide coil could be into de-coiler tension roll.
2. Guiding device
Composed by: extension feeding plate, pressing roller.
Function: Assist to feed steel into straighten machine smoothly.
3. Straighten unit
Steel structure: machine base, housing. A couple of straighten rollers, upper roller wrapped with PU, three pcs of leveling rollers
Function: straighten steel sheet. Straighten rollers can be lifted. Clearance between leveling rollers up and down can be adjusted by hand wheel, to suit for different material thickness.
4. Cutting machine
Composed by machine stand, knife rack, guide track, oil pump and knifes.
Function: due to cutting or special situation, to ensure the steel enter into next process in order.
5. Stacker
Composed by machine stand, support base, big diameter steel roller.
6. Electrical system
Composed by stand electrical cabinet, PLC program installed, touch screen etc.
Function: to control the whole production line.
Technological Process
Coiler loading → feeding-in with guiding (metal sheet is guided into the first forming station) →straighten
→ rolling→ forming→ cutting → stacker running out

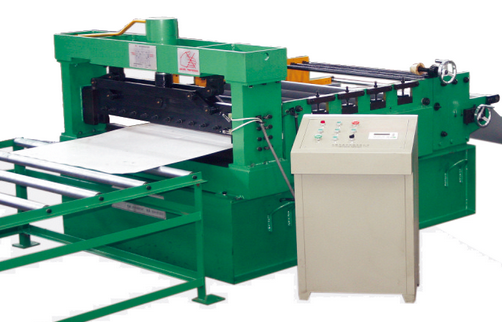

Referfence Picture
Our Advantage
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
- More Than 10 Years Experience
